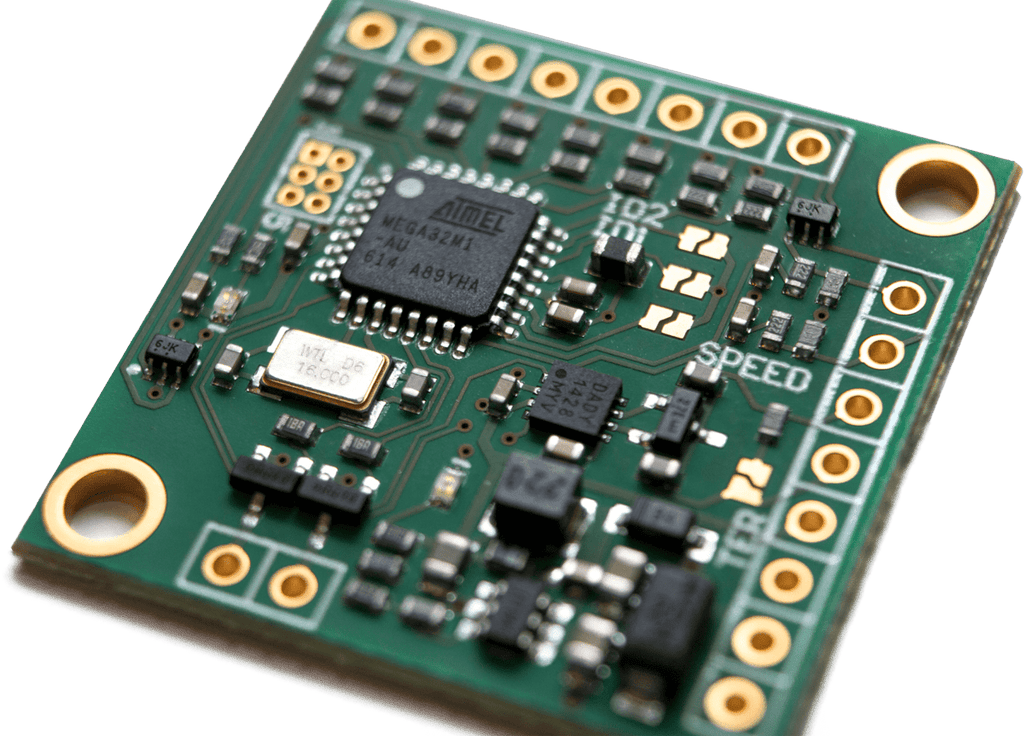

A CAN switch board is a tiny device to allow easy transfer of up to 8 switch states and two analog signals over the CAN bus. In addition to this, the device has 2 LED outputs built-in that can be activated with a CAN bus message. The main purpose of this board is to build custom steering wheel panels containing buttons, rotary switches and indicators.
So if you already have a set of switches but are running out of Digital (switch) inputs on your ECU, this offers you the chance to free up 8 inputs and send all the data over the CAN network.
The switchboard device is designed to work with ECUMASTER EMU BLACK and PMU. It can also be used with any other devices with custom configurable CAN bus inputs, Such as Link and MoTec.
Key features
- CAN BUS 2.0B
- 500 or 1000kbps, user selectable
- different CAN ID and CAN frame structures can be selected,
- only 25x25mm in size,
- 8 low switch button inputs,
- 2 analog inputs / rotary switch inputs, 0-5V, 10bits
- 2 outputs for LED
- 6-20V power supply
- +5V output for powering rotary switches or potentiometers
- E40
