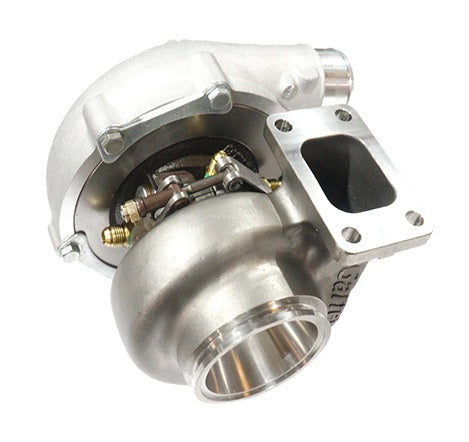

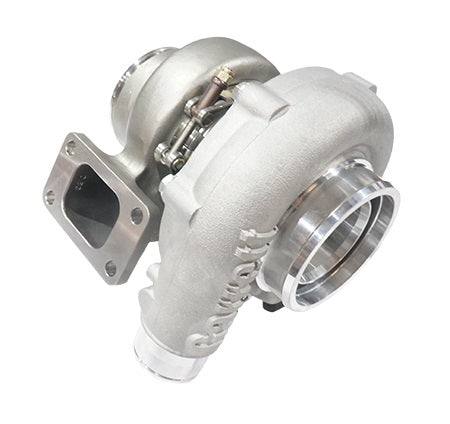

Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation
Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation
Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation
Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation
Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation
Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation
Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation

Garrett G30-660 Turbo, T3 Inlet, V Band Outlet, Standard Rotation

  • Sale
  • £1,804.00
  • £2,054.63
Product Description:
      Garrett® G30-660 standard rotation turbo assembly kit with 3" inlet and 2" outlet compressor housing and 1.01 A/R O/V, Undivided T3 Entry/V-Band outlet turbine housing.

Product Features:
  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.70
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: T3 Open(undivided) inlet (same flange size and placement as GTX)
  • Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN

    Garrett Part Number:

    0.83

    • 880693-5001S
    • 740902-0090

    1.01

    • 880693-5001S
    • 740902-0091
