The new Innovate Motorsports MTX Digital Series “Dual Function” Gauges are now available! The 2 1/16” (52mm) gauges feature a water resistant casing, interchangeable faceplates and bezels, locking connectors for simplified installation, and MTS serial connections used to connect with other Innovate devices for logging.
DISPLAY RANGE
- Ethanol Content %: 0-100%
- Temp: -40-257 °F (-40-125°C)
KEY FEATURES
- Ethanol Content
- Error reporting for ethanol content sensor (Digital Display)
- Fuel Temp
- Change exterior LED as a fill bar or light a single indicating LED
- Programmable exterior LED ranges vs. color
- Programmable unit of measure as °F or °C
- Programmable fuel temperature warning (outer LED)
-
2-Configurable analog outputs
- Ethanol Content: 0v = 0%, 5v = 100%
- Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)

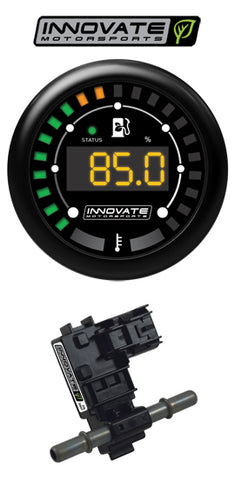

MTX-D: Ethanol Content Percentage & Fuel Temp Gauge Kit, includes: Gauge (Black Faceplate, Black Bezel), Silver Bezel & White Faceplate, Harness, Program Cable (Serial), Ethanol Content Sensor, Quick Start Installation Guide.
