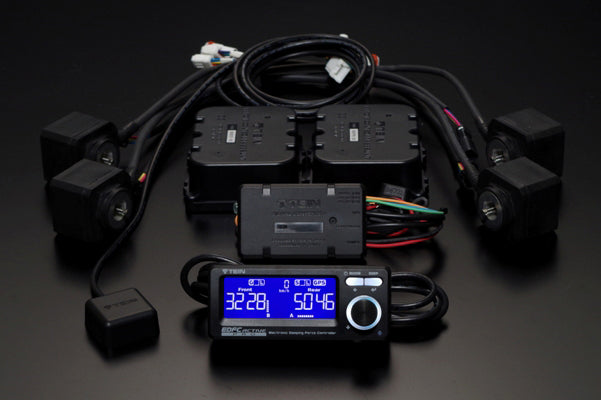

EDFC ACTIVE PRO is a high-spec version of EDFC ACTIVE, which enables automatic adjustment of damping force according to the changes in longitudinal G-force and vehicle speed, and comes with new and upgraded functions.
Newly-added features, such as individual adjustment of 4 shock absorbers, lateral (cornering) G-actuated automatic adjustment, vehicle speed pulse input and 2 additional input ports to communicate with drivers, are sure to bring out the full potential of each shock absorber as well as the vehicle itself. Please enjoy another dimension of shock absorber performance that EDFC ACTIVE PRO brings. Additional automatic speed-sensitive damping force adjustment feature is available with the use of optional "GPS kit" sold here.
More Aggressive Damping Force Control:
To control damping force more actively according to driving conditions, 2 automatic adjustment modes are available; "G-actuated automatic adjustment mode" and "speed-sensitive automatic adjustment mode (optional GPS kit is required)". Damping force adjustment levels can be set in 3 different types; 16-level, 32-level or 64-level.
Simplified Installation/Wiring:
Motor driver units, located at front and back of the car, and controller unit are connected wirelessly, to reduce time-consuming cable runs. Controller unit has all the sensing functions, with built-in optical sensor to detect brightness in its surroundings and connectivity with optional GPS kit to detect vehicle speed. The power supply cable is the only wiring required between the controller and the vehicle, making it possible and easier to install onto wider varieties of vehicle models. Well-considered size and design enable controller unit to be installed to most desirable position easily without any bulky wiring.
Better Visibility & User-Friendliness:
Larger display is used for improved visibility and one-dial operation allows for easier handling.
Useful Added Features:
EDFC ACTIVE offers lots of extra features including adjustable display color and G-force display. In addition, with optional GPS kit installed, vehicle speed, altitude, longitude, latitude, trip meter and/or clock can be displayed.
Extensibility:
One controller unit can control up to 8 motors, with additional motor driver unit installed. This comes in handy for damper kit with separate compression/rebound adjustment.
Reasonable Price:
Despite all the advanced features, EDFC ACTIVE is very reasonably priced.
You will also need the Tein Motorkit to make this work with your car: https://www.gb-ent.com/products/tein-edfc-motor-kit
See the Tein page here for full specs: http://www.tein.co.uk/product/edfc_active.html
